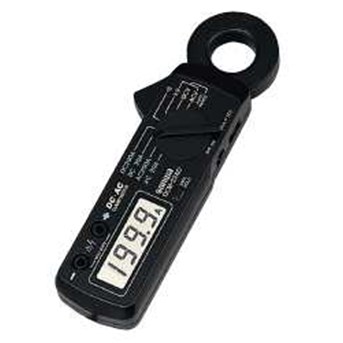

Sanwa DCM 22AD

DCM 22AD, Sanwa Clamp Meter Digital Clamp Meter 200A AC/ DC Basic Features • DC/ AC current measurable 200A max. • Continuity check buzzer • Data hold • Slim core for narrow space • Display : numeral display 1999 • Sampling rate : 2 times / sec. for numeral display AC frequency bandwidth : 40-400Hz ( ACA) , 40-500Hz ( ACV) Optional Accessories Clip adapter : CL-11, TL-8IC Specifications ACA : 20/ 200A DCA : 20/ 200A ACV : 2/ 20/ 200/ 500V DCV : 2/ 20/ 200/ 500V Resistance : 2k/ 20k/ 200k/ 2000kOhm Continuity : Buzzer sounds at less than approx. 40Ohm. Open voltage : approx. 0.43V Bandwidth : 40~ 400Hz ( ACA) , 40~ 500Hz ( ACV) Display : 1999 Clamp diameter/ Conductor size : 22mm/ 10x21mm Withstand voltage : 2000VAC Battery : R03 x2 Size / Weight : H179xW56xD26.5mm / approx. 140g Standard accessories included : Test lead ( TL 61) , Carrying case ( C CL) , Instruction manual
