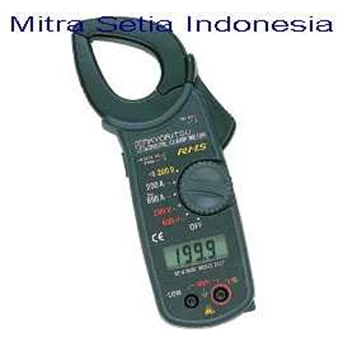

Kyoritsu 2027

2027, Kyoritsu Clamp Meter True RMS Digital Clamp Meter 600A AC Basic Features • True RMS reading instrument that permits precise measurements of non-sinusoidal waveform AC current and voltage. Accurate measurements are also possible at low frequencies from 10Hz upwards. • Designed to meet internationally proven safety standards such as IEC 61010-1, UL3111 and VDE0411. • Three functions in one unit; AC current, AC voltage and resistance. Specifications ACA : 200/ 600A ( True RMS) ACV : 200/ 600V Ohm : 200Ohm Continuity buzzer : buzzer sounds below 30± 20Ohm Conductor size : dia. 33mm max. Frequency response : 40~ 1kHz Withstand voltage : 5550VAC for 1 minute Power source : 6F22 ( 9V) x1 Dimensions : 208( L) x 91( w) x 40( D) mm Weight : 400g approx. Accessories : 7066A ( test leads) , 9079 ( carrying case) , 6F22 ( 9V) x1, Instruction Manual Optional : 8008 ( multi-tran)
